CNC GRBL 32bits board V2.0 LCD enclosure

Enclosure for the LCD touch module of the GRBL 32bits board V2.0 from makerfr.com. You can control a CNC machine using the LCD touch module and the main board.

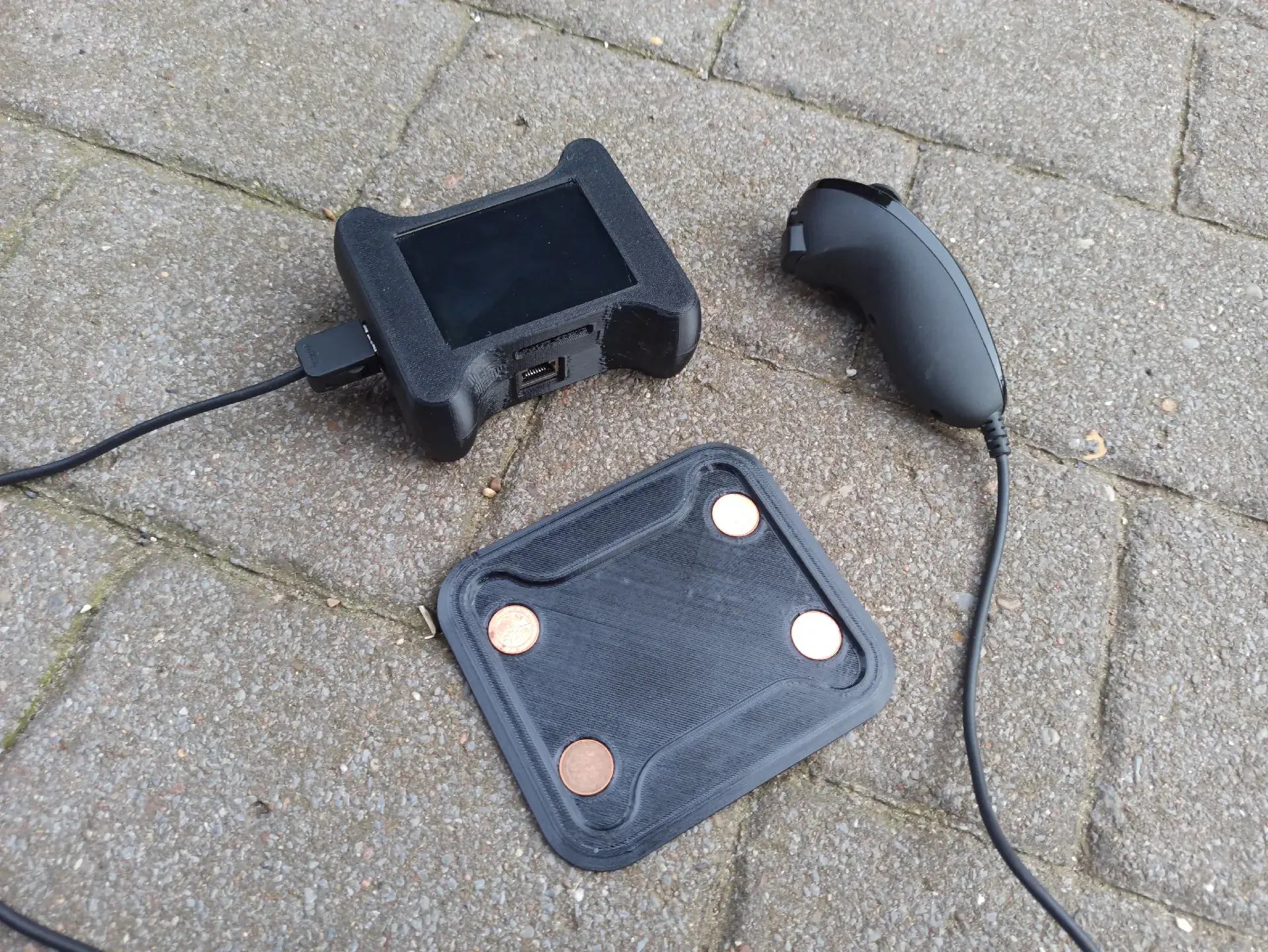

This powerful controller offers versatile connectivity options, such as connecting the LCD module to the main board via cable or wirelessly. To accommodate this, I designed a detachable housing with accessible connectors.

If you need to modify the design, all parts are available as STEP files as well.

STL/STEP-Files are hosted on printables

Magnets are available here: 10x2 mm Neodym Mini Magnets

1. Parts

  • 4 x 10mm x 2mm Magnets
  • 4 x 30mm long 3mm wood screws
  • 4 x euro cent (for the base plate)
  • 1 x top.stl/stp
  • 1 x bottom.stl/stp
  • 1 x base_plate.stl/stp

2. Assembly

Use four 30mm long wood screws with a diameter of 3mm to hold the two halves together.

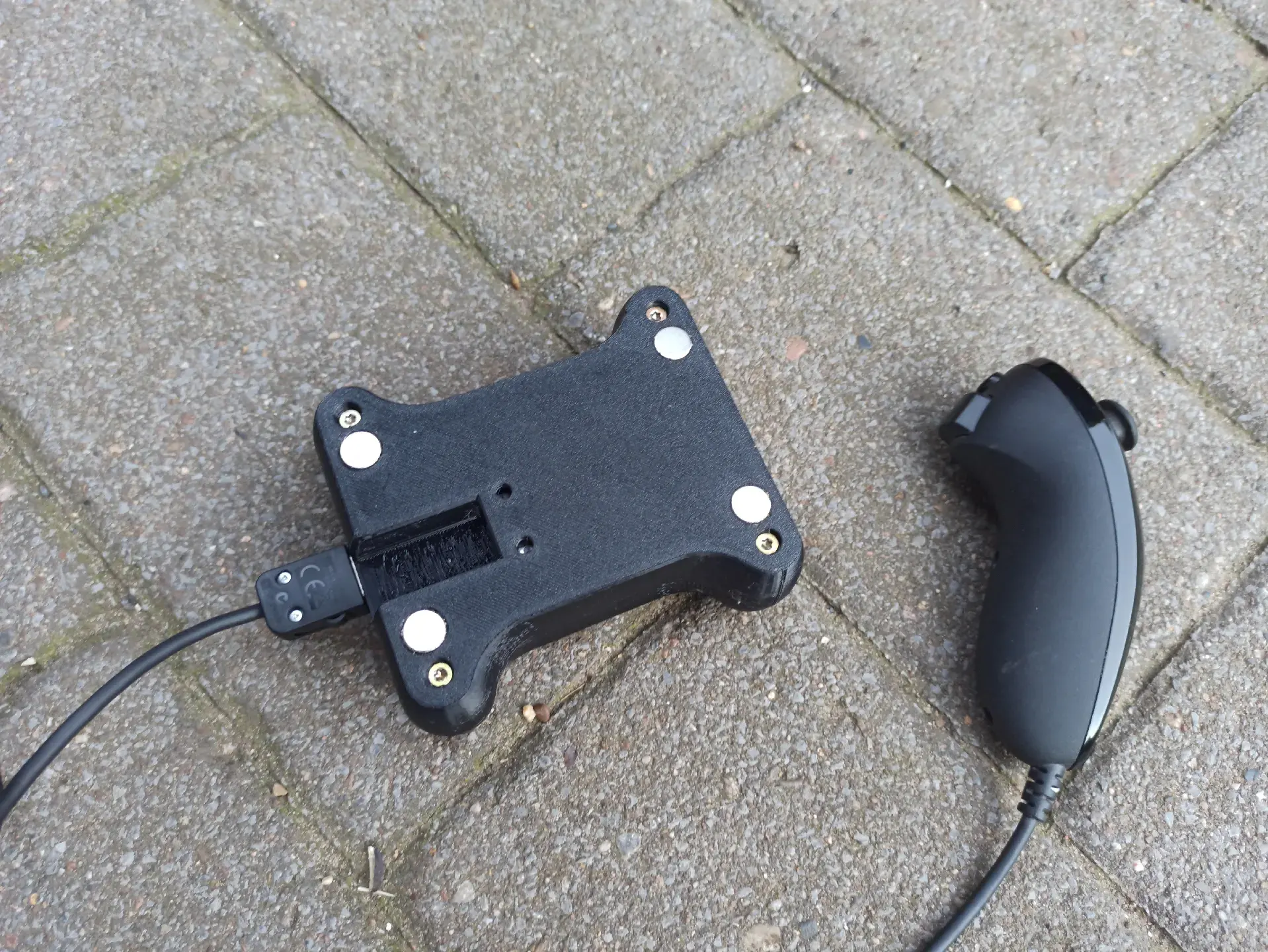

You need four magnets for the bottom part. Each magnet should be 10mm in diameter and 2mm thick.

Glue the magnets into the designated holes with superglue.

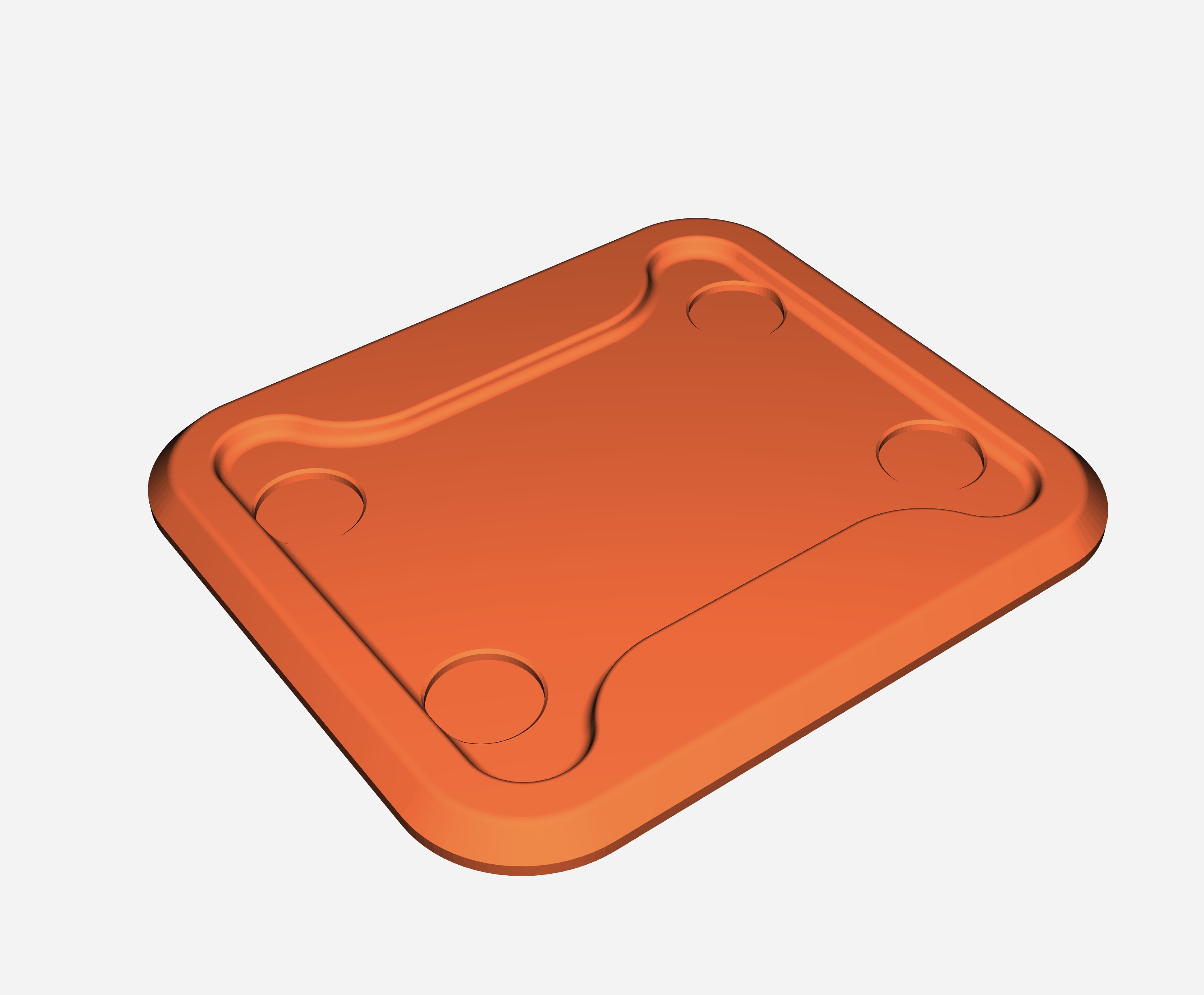

3. Base Plate

Attach four euro cent pieces to the base plate using superglue.
