Slide-In Modules
Mounting the TRRS socket

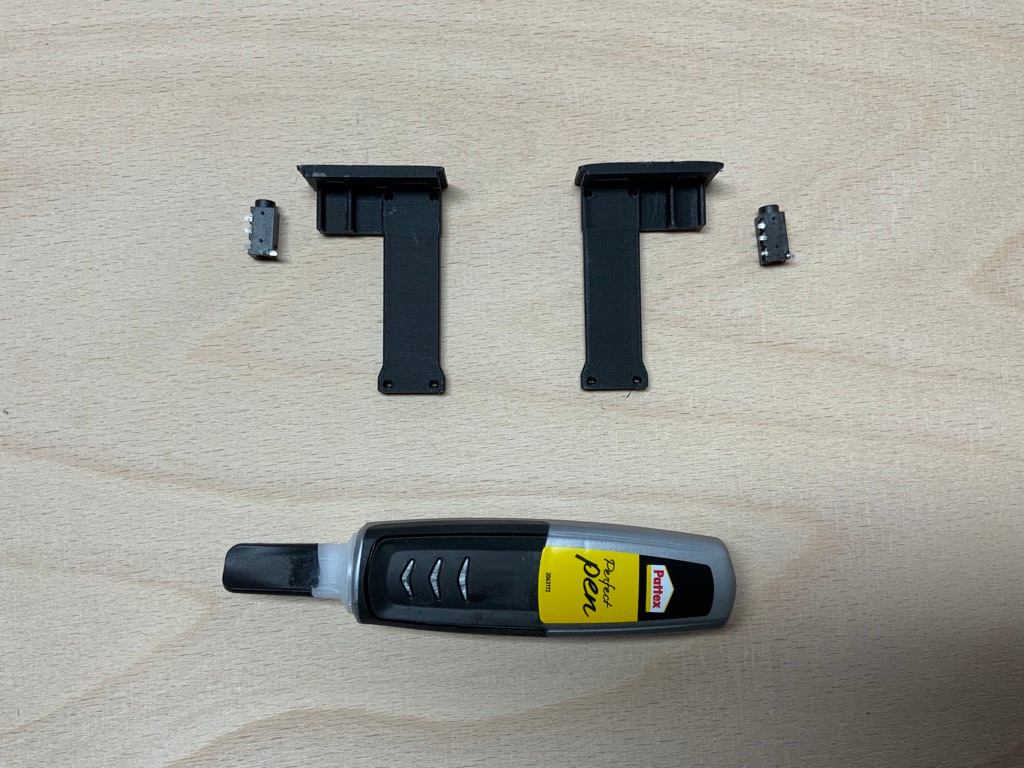

Glue the TRRS sockets into the slots with super glue.

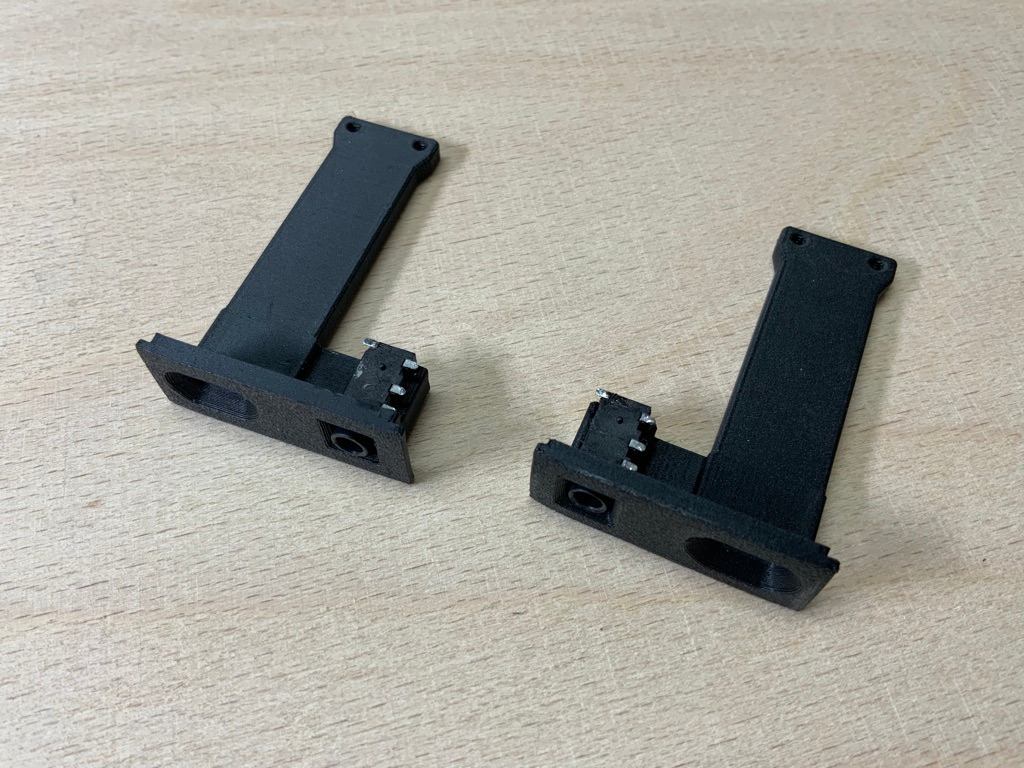

This is how it should look like:
Fastening the Raspberry Pi Picos

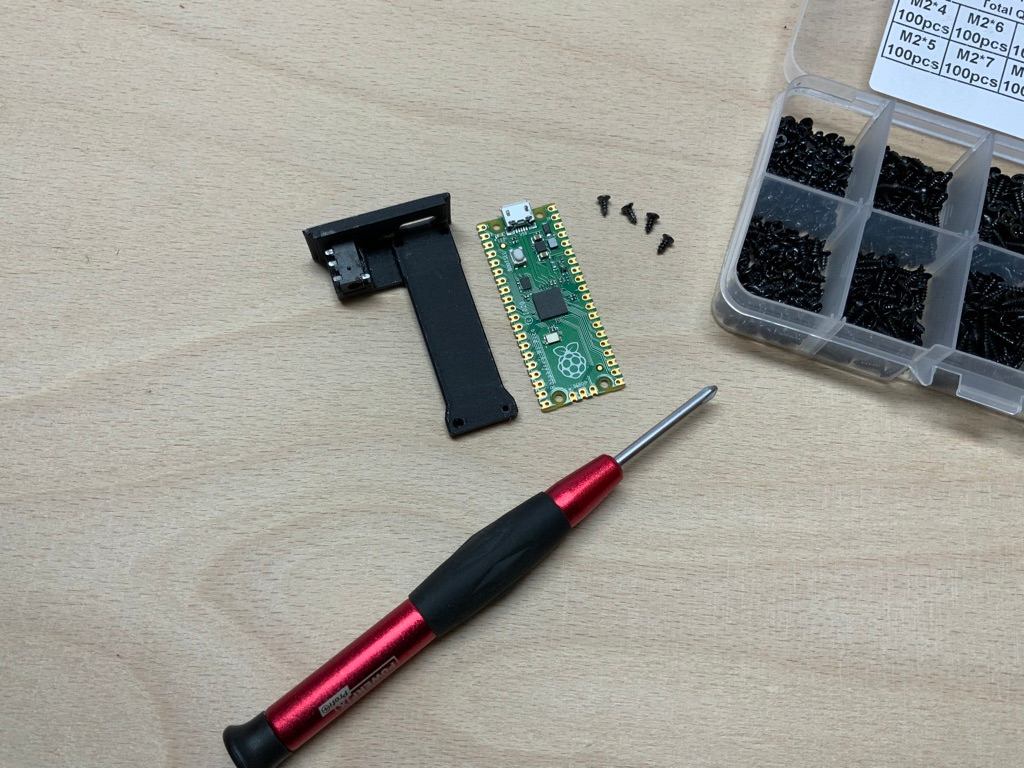

The Picos are attached to the slide-in modules with four 2 x 5 mm screws.

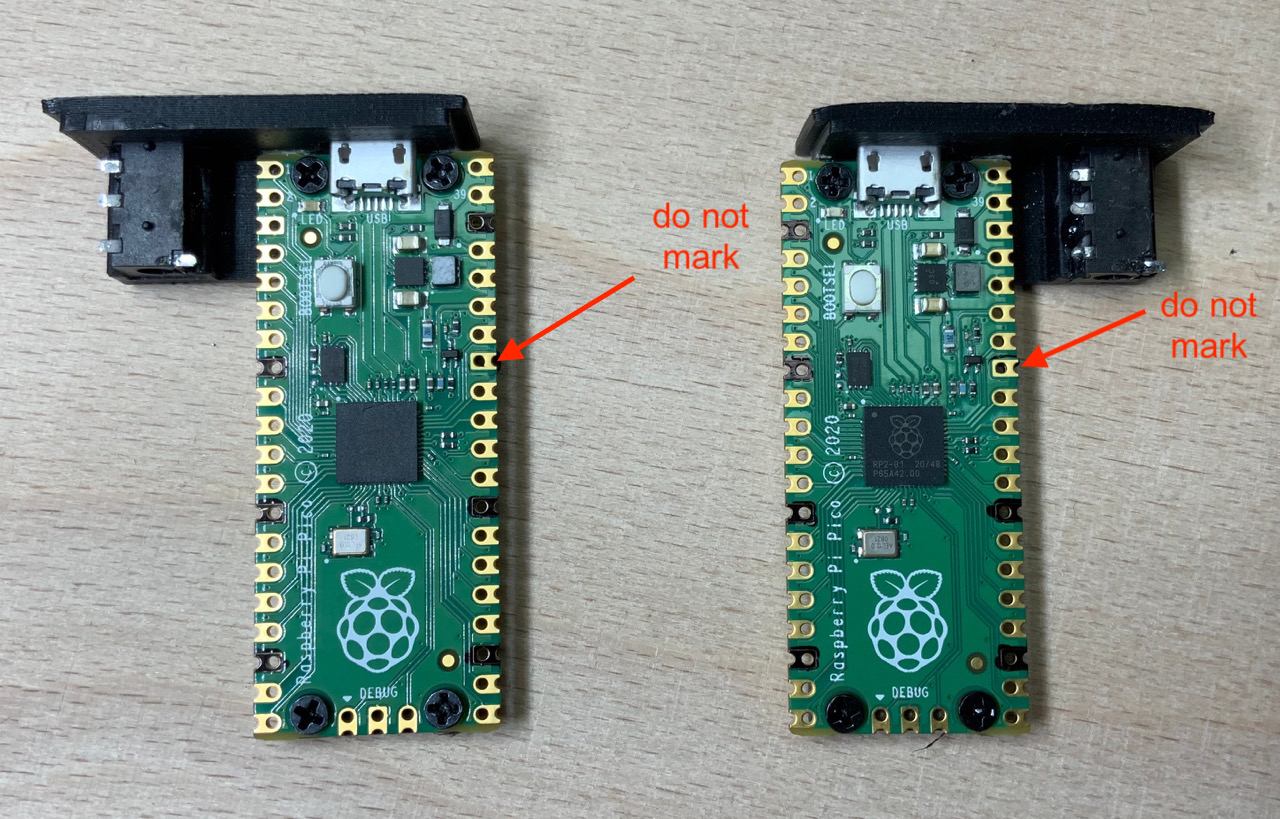

To avoid confusion when wiring the switches, mark the ground pins that are not needed with a permanent marker. Do not solder any cable to these marked pins later. Please do not skip this step. You can connect the switches to any input pin but the marked ground pins are not allowed. The risk of confusion without these markings is quite high.
Connecting the TRRS jacks to the Raspberry Pi Picos

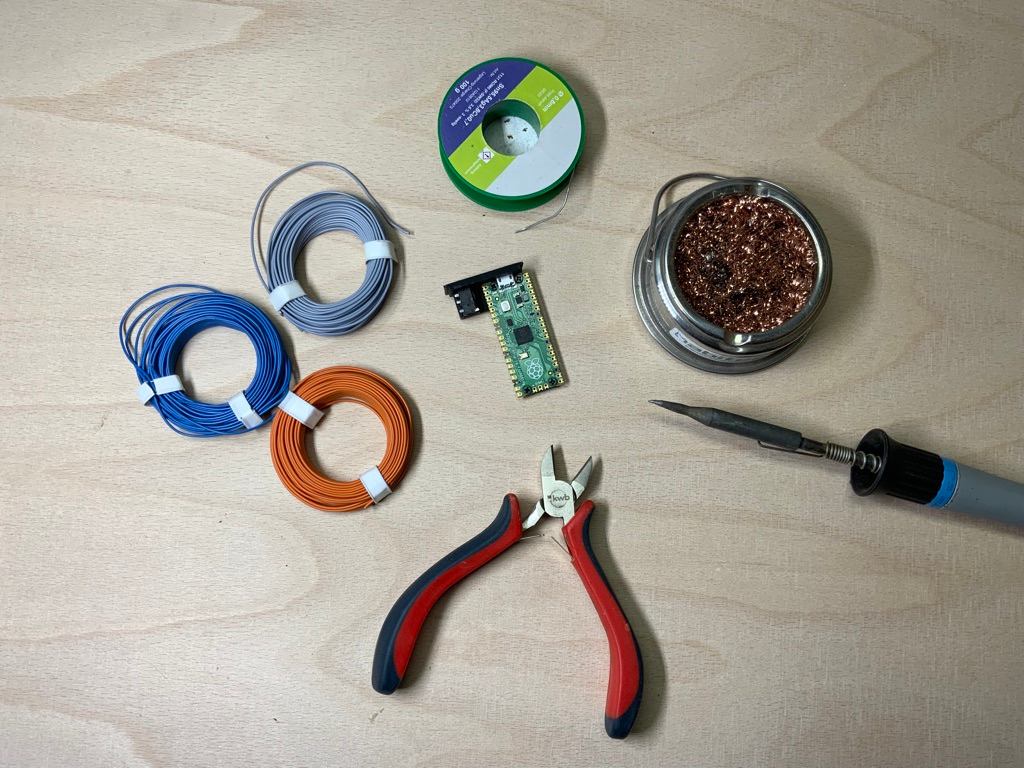

For the wiring you need a soldering iron, solder, a soldering sponge and a few centimeters of the 0.5 mm copper cable. I used different colored cables to show the connections clearly. Of course you can also use only one color.

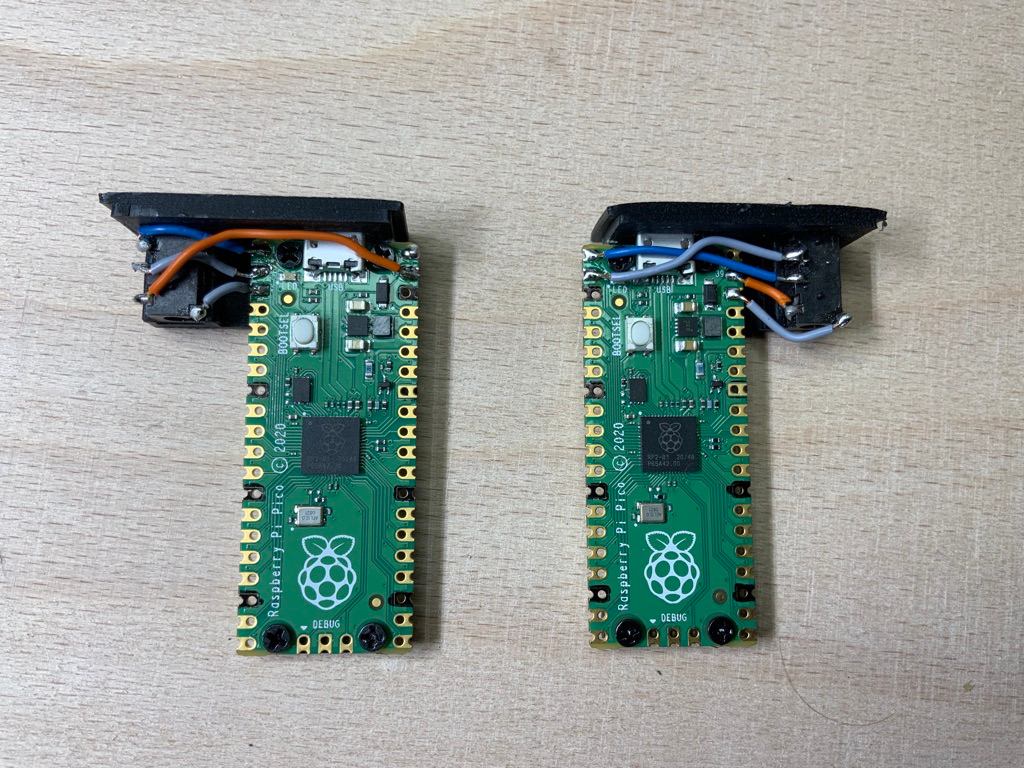

This is how the cable routing looks for both sides:
