Enclosure for the LCD touch module of the GRBL 32bits board V2.0 from makerfr.com. You can control a CNC machine using the LCD touch module and the main board.

This powerful controller offers versatile connectivity options, such as connecting the LCD module to the main board via cable or wirelessly. To accommodate this, I designed a detachable housing with accessible connectors.

If you need to modify the design, all parts are available as STEP files as well.

Overall Required Parts & Materials

  • 1 x
    GRBL 32bits board V2
    1
    makerfr.com
  • 1 x
    CNC GRBL LCD enclosure STL files
    1
    Printables
  • 4 x
    10 mm x 2 mm Neodym Magnets
    1
    Amazon
  • 4 x
    30 mm long 3 mm wood screws
    1
  • 4 x
    Euro cent
    1

Instructions

1

Overview

Used in this step:

1 xGRBL 32bits board V21 xCNC GRBL LCD enclosure STL files4 x10 mm x 2 mm Neodym Magnets4 x30 mm long 3 mm wood screws4 xEuro cent
Media
2

Assembly

Use four 30mm long wood screws with a diameter of 3mm to hold the two halves together.

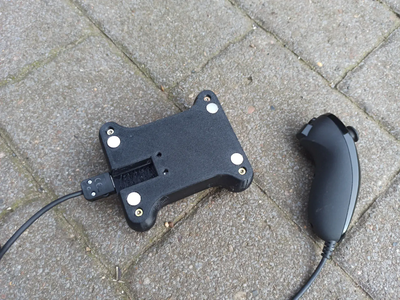

You need four magnets for the bottom part. Each magnet should be 10mm in diameter and 2mm thick.

Glue the magnets into the designated holes with superglue.

Media
3

Base Plate

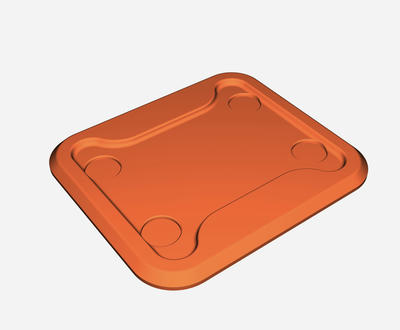

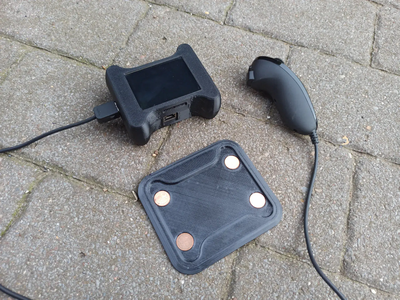

Attach four euro cent pieces to the base plate using superglue.

Media
