This is a remix of “THE FRAME” by Wouter, specially adapted for the Apple iPad Pro 11" M4.

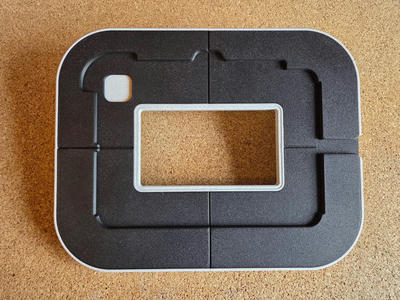

The original design was created for the 13-inch model and offers one of the best and most comfortable solutions for drawing. Since I use the 11-inch model (M4), I’ve modified the inlays and dimensions so that the smaller iPad now fits into the frame precisely and like a glove.

Why this frame is great:

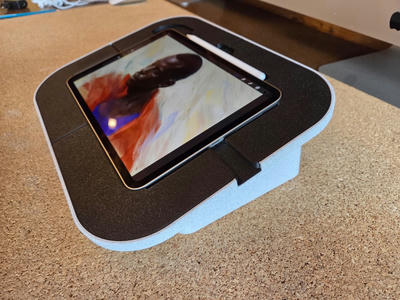

  • Perfect ergonomics: The included stand offers a 14-degree tilt—ideal for hours of drawing (e.g., in Procreate) or modeling without neck or wrist pain.
  • Wide hand rest: The wide bezel around the iPad solves the problem of your hand slipping off the edges of the screen while drawing. It feels like working on a large sketchpad (similar to the Sketchboard Pro, but less bulky).
  • Full Access: Precise cutouts for the speakers, the USB-C charging port, and the buttons. The Apple Pencil Pro can still dock and charge on the iPad without any issues.
  • Versatile use: The iPad isn’t clamped in place; instead, it sits securely in the frame thanks to gravity and the precise fit (Caution: Do not hold the frame vertically!). The wide edges also make the frame perfect for use on the couch.

Overall Required Parts & Materials

  • 1 x
    3D-Files
    1
    Printables

Differences from the Original

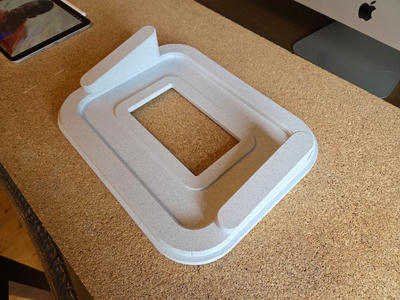

Unlike Wouter's original design, my version has permanently attached feet. These not only give the frame extra stability but also ensure a completely flat surface. As a result, the iPad sits perfectly and doesn't wobble while I'm drawing.

1

Print Parts

Print Settings:

  • Supports: No supports needed! (All chamfers are designed so that they can be printed without overhangs).
  • Brim: Generally not required.
  • Infill: 15–20% (Gyroid is recommended).
  • Walls (Perimeter): At least 3 wall lines for stability. For the inlay parts, I recommend 3 to 4 base layers for a sturdy surface.
  • Build plate: All parts fit on a standard print bed (256 x 256 mm). A textured PEI print bed ensures a great, uniform look for the surfaces (since the visible sides rest on the print bed).
  • Material: PLA works great. If you frequently use the tablet in a warm car or in direct sunlight, you should consider PETG.

Used in this step:

1 x3D-Files
2

Assembly

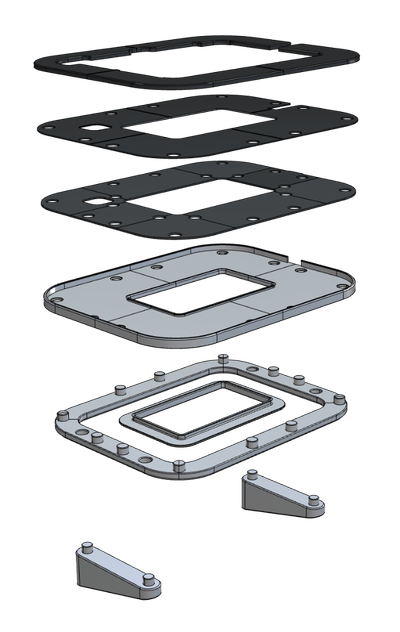

Except for the feet, everything just snaps together and doesn't need to be glued.

Media
3

Attaching the Feet

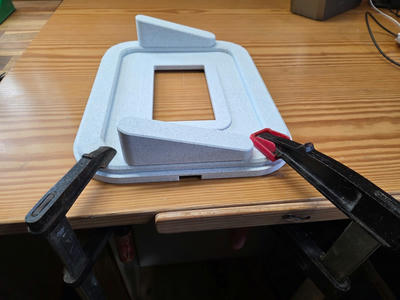

Glue the feet to the underside of the frame using “UHU Hartkunststoff” (or a comparable adhesive). It’s very important that the frame lies completely flat while gluing so that it doesn’t warp and nothing wobbles later on. As shown in the picture, I recommend using screw clamps to press the frame—including the feet—flat against a tabletop. Do not remove the clamps until the adhesive has completely cured.

Media
